This TR-EX 1500 is custom designed and engineered by Traxxon. The TR-EX 1500 is a compact and high-performance excavator drill attachment designed for civil engineering works such as anchoring, soil nailing, casing, micropiles, and blast hole drilling.

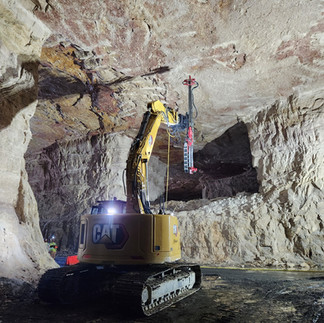

Our customer came to us with the request of using their CAT 330 excavator and an attachment that could drill probe holes in the ceiling that will vary in height from 40-50 feet. We took to the drawing boards and built an extension to the front of the mast on our TR-EX 1500 shoring attachment. This unit is now working hard underground at an old limestone quarry, making drilling into 50 foot ceilings look like an easy task!
Benefits:
Advanced Bosch Rexroth modular electro-hydraulic valve bank.
In-line high pressure filter to separate contaminants.
Dual slewing drive feed mast articulation system for various positions.
Heavy duty modular feed mast with the ability to extend the stroke by adding on a section.
Radial piston feed motor and extension cylinder with locking valves.
Dual Axis inclination sensor +/- 30
Powerful hydraulic drifter with steel energy chain for hose management.
Integrated flushing swivel on the drifter for air, water flushing, or grout injection.
Specs:
Excavator Class: 16-30 Ton
Feed Mast Stroke: 13'-6"
Clamp Range: 1.25"-5"
Clamping Force: 30,000lbs
Weight: 5,000lbs
At Traxxon, we specialize in creating custom solutions for even the toughest drilling challenges. Get in touch with us to see how we can help with your project.
